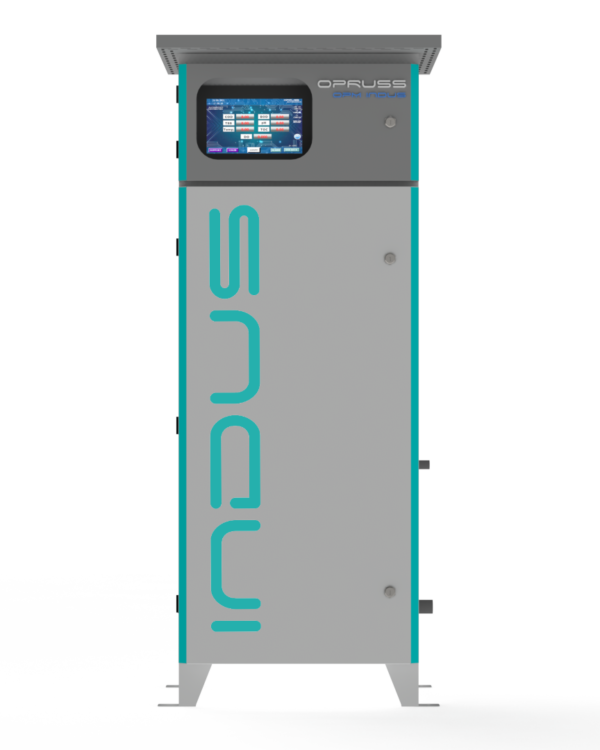

Online Effulent Quality Monitoring Station

Online Effulent Quality Monitoring Station

The Online EQMS Analyzer is of UV-Vis Spectrophotometry based analyser for measurement of BOD, COD, TSS, pH(Electrode) is the perfect balance of quick analysis, economical operation, consumable free and field deployable. It uses Dual Beam Absorption Spectrophotometry as a principle analysis method derived from Double Beam scanning of Ultraviolet and Visible light attenuation similar to other variants. The Analyser benefits include the absolute zero reagent use and ready for installing the system in outdoors. The model is specially designed for treated waste water applications where operating ranges are low but interferences are high.

Based on its modular configuration, the parameters can be combined freely and you can measure Multiple parameters simultaneously. The most efficient solution for measuring the organics and turbidness that define the quality of water. The Consumable-less and chemical-free spectral measurement allows a precise determination of the COD and Turbidity level. Whether the source is influent, biological tank or effluent, the self-cleaning sensors are ready for sustaining the best of their performance.

Display 7” (10.2” optional) Rugged Industrial Display
Type Industrial Grade Full Cabinet
Installation IP66 Rated complete cabinet System
Alarm Relays Independent Relays (upto-8)
Communication Output RS232, RS485, TCP-IP
User Access Management Available on board
Over Voltage & Under Voltage Protection Advanced Electronics will trip system if over/under Voltage occurs
USB data logging Available on board
Supply Voltage 230V AC ± 10%
Sensor Connection 4 Core Shielded Cable
M.O.C Cold Rolled Steel (M.S) *SS304 (optional)
